Finishes
Operable partition walls don’t have to be boring. The right finish (or combination of finishes) can transform a partition into an accent wall that has the ability to tell a story, inspire, wow, or simply tie together a design concept.
Browse our expansive selection of standard and specialty finishes for your Skyfold wall. Turn your partition into a writing surface by adding a white markerboard finish to some or all the panels. Unleash your creativity by mixing and matching colors and finishes for a truly distinctive design—the possibilities are endless.
Do you already have an idea or a specific finish in mind? We’ll work with you to make it a reality. Keep in mind, however, that panel finishes cannot exceed 1/8” (3mm) in thickness. Moreover, customer supplied vinyl or fabrics cannot exceed 0.040” (1mm) in thickness since these finishes are wrapped around Skyfold’s panel edges. Finishes that exceed 0.040” (1mm) in thickness can be applied onto the face of the panel only and must be rigid in nature, such as a plastic laminate or wood veneer.
Head to the photo gallery to see what our standard and custom finishes look like on Skyfold retractable walls.
FABRIC
Available on all 51, 55 60 and NRC* models and Zenith 48**
*NRC model is only available in acoustically transparent fabric
*Duvaltex Marin & Resolve can be applicable for NRC models
**Available in Duvaltex 1300 Marin and 1301 Resolve only
Please note that fabrics are railroaded onto our panels. They are applied horizontally along the length of the panel rather than vertically, as is the usual custom with wall finishes.
VINYL
Available on all 51, 55, and 60 models and Zenith 48
Please note that vinyls are railroaded onto our panels. They are applied horizontally along the length of the panel rather than vertically, as is the usual custom with wall finishes.
PAINT
Available on all 51, 55 and 60 models and Zenith 48*
*Available in Standard Elevate UNA-CLAD™ colors only.
PLASTIC LAMINATE
Available on all 51, 55 and 60 models
Standard Panolam
Skyfold offers two pre-approved HPL plastic laminates from Panolam: Nevamar (ARP (T-) finishes only) and Pionite (Textured/Suede (SD) finishes only). Due to frequent changes in patterns, it is impossible to keep an accurate catalog on our website
View Panolam’s catalog of Nevamar HPL
View Panolam’s catalog of Pionite HPL
Panolam shows the HPL finishes in their original orientation. Please note, since finishes are railroaded onto Skyfold panels, you will have to turn the finish samples 90° to see how the finish will appear on your Skyfold wall.
IMITATION WOOD VENEER
Available on all 51, 55, and 60 models
SPECIALTY
Available on all 51, 55 and 60 models
LX Hausys BENIF Architectural Films - Selected Simulated Wood finishes.
(Formerly LG Hausys Benif)
Available on all 51, 55, and 60 models
Please note that LX Hausys BENIF Architectural Films are railroaded onto our panels. They are applied horizontally along the length of the panel rather than vertically, as is the usual custom with wall finishes.
Graphic Mural
Stainless Steel
White Markerboard
Wood Veneer
Standard Vinyl
SKY-1001
SKY-1002
SKY-1003
SKY-1004
SKY-1005
SKY-101
SKY-102
SKY-107
SKY-110
SKY-111
SKY-201
SKY-202
SKY-206
SKY-209
SKY-211
SKY-301
SKY-303
SKY-305
SKY-308
SKY-311
SKY-401
SKY-402
SKY-405
SKY-411
SKY-412
SKY-504
SKY-505
SKY-506
SKY-511
SKY-512
SKY-601
SKY-602
SKY-603
SKY-604
SKY-605
SKY-701
SKY-702
SKY-703
SKY-704
SKY-705
SKY-801
SKY-802
SKY-803
SKY-804
SKY-805
SKY-901
SKY-902
SKY-903
SKY-904
SKY-905
Product Specifications
Weight: 20 oz (612 g/lm)
Material: Vinyl
Backing: Poly Cotton Osnaburg
Fire Rating: ASTM E-84: Class A
All Material components Made in the U.S.A.
Sustainability
Ultra-low VOC meets CA 01350
CA CHPS (Collaborative for High Performance Schools) Listed
SCS Indoor Advantage™ Gold Certified
GreenCircle Certified™
CA Prop 65 Compliant
Standard Skyfold + Duvaltex Collection
Duvaltex Marin 1300 - OCEAN WASTE CLEAN IMPACT TEXTILES™
90% Post-Consumer recycled polyester including ocean waste
10% Polyester
Benthic 1300-1157
Blacktip 1300-1149
Carrageen 1300-1150
Clownfish 1300-1152
Dolphin 1300-1147
Great White 1300-1143
Grey Whale 1300-1148
Ice Edge 1300-1145
Intertidal 1300-1156
Mangrove 1300-1154
Pelican 1300-1141
Red Snapper 1300-1151
Sand 1300-1142
Sea Glass 1300-1146
Sunfish 1300-1153
Swell 1300-1155
Tusk 1300-1144

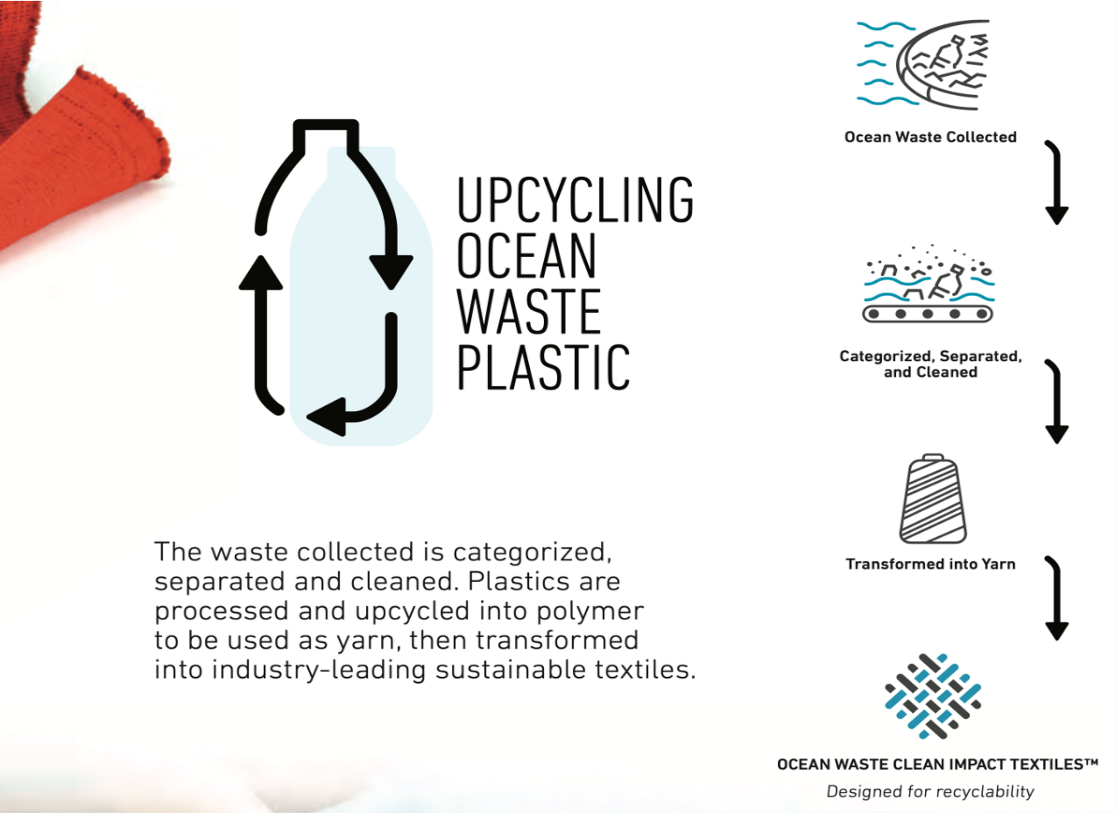

OCEAN WASTE CLEAN IMPACT TEXTILES™ tackle one of the most pressing environmental issue we face today: pollution of oceans by plastics.
Duvaltex/Guilford of Maine CLEAN IMPACT TEXTILES™ repurposes ocean waste Plastics and transforms them into industry-leading sustainable textiles - helping preserve our oceans for future generations.
- Made with upcycled ocean plastic waste
- For every pound of fabric, up to half a pound of marine waste is removed from the ocean
- Compliance with the highest industry standards
Click here to order a sample.
Duvaltex Resolve 1301 - BIODEGRADABLE CLEAN IMPACT TEXTILES™
100% Post-Consumer recycled Biodegradable polyester
Attain 1301-1197
Bold 1301-1199
Clarify 1301-1202
Conclude 1301-1206
Courage 1301-1201
Decide 1301-1195
Earnest 1301-1194
Effect 1301-1203
Explain 1301-1200
Fortitude 1301-1205
Intention 1301-1196
Manage 1301-1204
Plan 1301-1198
Zeal 1301-1207
BIODEGRADABLE CLEAN IMPACT TEXTILES™ address the daunting problem of how to deal with polyester fabric at the end of its useful life. By redesigning throwaway materials into biodegradable textiles*, we can solve the problem at its roots and help keep plastic out of our oceans and landfills.
We achieve this through the addition of a biocatalyst in the yarn-extrusion process which enables anaerobic digestion in landfill and wastewater treatment conditions.*
- *Biodegradable in landfill after 1,278 days (tested under ASTM D5511)
- Manufactured for recyclability or biodegradability
- Industry-leading performance without compromising sustainability
Biodegradable
Click here to order a sample.
Premium Skyfold + Carnegie Xorel Collection
Linen 4
Meteor 705*
Meteor 706
Meteor 766
Mojave Matte 501
Nexus 903
Sahara Matte 609*
Stratton 14
Strie 807*
Strie 809*
Strie 830*
Windsor 32
*Non directional / Non-directionnel
Since its introduction in 1981, Xorel's proven high-performance across a variety of applications and end uses has earned it the devotion and loyalty of designers and architects around the world. No matter where you are working, Xorel's multipurpose nature allows it to deliver against the demands of any interior space.
**Biobased Xorel:
Carnegie introduced biobased Xorel in 2013. A plant rather than fossil-fuel based product, biobased Xorel generates a significantly reduced carbon footprint. Offering the same design beauty and performance as Xorel, it is the first and only biobased textile to earn the "Cradle to Cradle Gold" and "Living Product Challenge" certification.
Finish Fabricator's Cleaning InstructionsImitation Wood Veneer
Cherry Tree
Cherrywood
Mahogany
Medium Oak
Walnut
White Oak
Selected Simulated Wood
CW154 Teak
CW358 Castagno Carducci
CW407 Wizard Grain
CW431 Walnut
CW437 Cherry
CW527 Maple
CW556 Oak
CW88 Cherry
DW308 Oak
DW467 Walnut
DW550 Oak
DW648 White Oak
NOTE FOR HIGHLIGHTED SWATCH:
Please note that finishes are applied horizontally along the panel length rather than vertically, as is the usual custom with finishes. Please note that this swatch is shown in its original orientation.
Physical Features:
| Item | Specifications | Test Method |
|---|---|---|
| Thickness (without release paper) | 0.15~0.60mm | Micrometer |
| Tensile Strength (kgf/cm^2) | (L)150~350 / (W)100~350 | ASTM 882 |
| Elongation (%) | (L)0~400 / (W)0~400 | ASTM 882 |
| Adhesion (24hr) | ≥ 1,000g/in | 180 peeling PSTC-1 |
| Dimensional Stability | 0.8mm | 100C oven, 2hr, avg. |
Sustainability:
LX Hausys Interior Film BENIF was developed with components satisfying the environment-friendly standards for various raw materials and adhesives, and transformed into a real eco-friendly product which meets the standards of public offices, schools, daycare centers as well as health-friendly homebuilding by achieving eco labels by types.
Cleaning:
Ordinary Dust and Dirt: For ordinary dust and dirt, you can brush it off with a soft cloth or brush. If this doesn't work, apply a few drops of water to the cloth or brush, then gently wipe. You can easily get rid of dust and dirt.
Tough old stains: If it is not possible to remove the stain with water, dip a soft cloth, brush or sponge in a cleaning solution made of mild neutral detergent, then wipe the film gently to remove stains.
Other LX Hausys BENIF films may be used as well. Please click here for the online catalog. Pricing and delivery times may vary from the Skyfold collection.
Standard Elevate UNA-CLAD™
Almond
Bone White
Sandstone
Sierra Tan
Stone White
Special Order
Aged Zinc
Award Blue
Brandy Wine
Burnished Slate
Champagne Metallic
Charcoal Gray
Cityscape
Classic Copper
Colonial Red
Dark Bronze
Dark Ivy
Electric Blue
Extra Dark Bronze
Hartford Green
Hemlock Green
Mansard Brown
Matte Black
Medium Bronze
Patina Green
Regal Blue
Regal Red
Sherwood Green
Silver Metallic
Sky Blue
Slate Gray
Teal
Terra Cotta
Tropical Patina
Vintage
UNA-CLAD™ is a PVDF coated galvanized architectural steel that is AISI-G90 extra smooth with minimum spangle and is primed and coated with full strength Hylar 5000/Kynar 500 premium fluoropolymer coating system of 1.0 mil total dry film thickness.
Benthic 1300-1157
Please note that finishes are applied horizontally along the panel length rather than vertically, as is the usual custom with finishes. Please note that this swatch is shown in its original orientation.
Maintenance: Do not use harsh solvents or cleaners or abrasive cleaning methods. To remove dust and soil, use a vacuum with a brush attachment. Glass panels can be cleaned using any regular glass cleaning product. Always consult the finish fabricator’s cleaning specifications before attempting to clean the panels.
