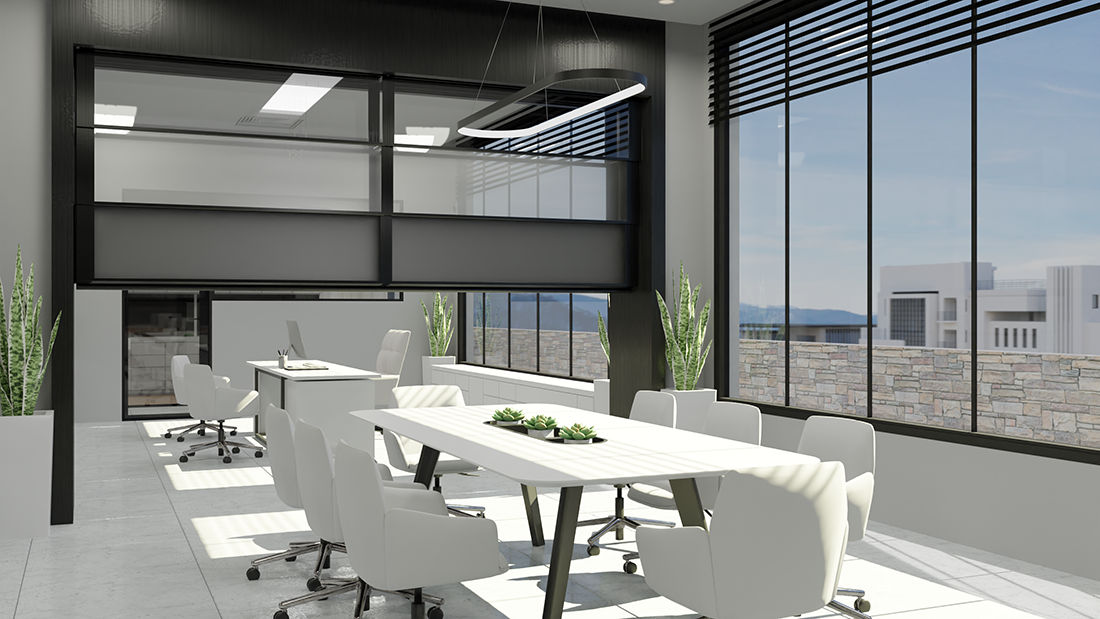

Skyfold Prisma™
We proudly present the future of glass vertical partitions: The Skyfold Prisma. Not only does the streamlined Prisma let the light shine in, but it does so without the use of any wall or floor tracks, rendering it completely invisible when stored into the ceiling.
Skyfold Prisma's slim metal frame, clean lines, and sleek design will add elegance and natural light to your flexible spaces. Skyfold Prisma's glass panels allow for sunlight to penetrate otherwise dark rooms and corridors, creating a more pleasant atmosphere that positively affects mood and productivity. With an STC rating of STC 52 / Rw 52, the Prisma ensures privacy between spaces, allowing confidential meetings, classes, and collaboration to occur simultaneously. Its slim frame allows for unencumbered sight lines, allowing your flexible space to feel more open, even as it's being divided.
The Skyfold Prisma, with finish options that include frosted glass and solid panels, creates a functional design piece to match your space's aesthetic.
With a streamlined tapered-down deployment, the Prisma is ideal for tighter spaces with potential obstructions, which would otherwise limit the use of a vertically folding retractable wall.
Advantages
- Retracts into the Ceiling to Conserve Floor Space
- Industry-Leading STC rating of STC 52/Rw 52
- No Floor or Wall Tracks
- Fully Automatic
- Easy-to-use digital keypad operation
- Quiet Operation
- Equipped with a safety obstruction sensor
We offer a wide range of finish options and layouts to meet your specific design needs. This is what makes Skyfold's movable walls a custom design piece within your space, and not just an acoustic room divider. The Skyfold Prisma glass panels can also be combined with solid panels to which fabric, vinyl, paint, plastic laminate and markerboard can be applied.
Product Model Comparison
| Prisma | |
|---|---|
| TECHNICAL: | |
| Acoustic Rating of System | 52 STC (52 Rw) |
| Acoustic Rating of Panels | N/A |
| Max. Wall Height | 12'-0" (3660 mm) |
| Max. Wall Length | Unlimited |
| Weight | ~13 lbs/ft² (~63.5 Kg/m²) |
| Ceiling Space Required for Storage (approx.*) | ≤ 36” (≤ 915 mm) |
| Ceiling Pocket Width (approx.*) | ≤ 24” (≤ 610 mm) |
| Glass Options | A Variety of Laminated Tempered Glass Options, including Clear Glass, Low Iron Glass, and Frosted Glass. |
| Frame Finish | Standards: Light Gray (RAL-7035 Matte Finish), Jet Black (RAL-9005 Matte Finish). Can be custom painted to match any RAL color mode. |
| Floor Tracks | N |
| Wall Tracks | N |
| Infrared Sensor | N |
| Obstruction Safety Sensor | Y |
| Auto-Reverse | Y |
| Back-Up Operation | Y |
| Acoustical Performance Warranty: 10-Year (or 5000-Cycle) | 10-year (or 5000 cycles): Included |
| Parts & Labor Warranty: 2-Year (or 5000-Cycle) | 2-year (or 5000 cycles): Included |
| AVAILABLE OPTIONS: | |
| LED Lighting | N/A |
| 10-Year (or 5000-Cycle) Parts Warranty | Y |
| Digital Touch Screen Operator Station – Included | Y |
| *Each Skyfold wall has custom dimensions made to fit your space. All dimensions are subject to numerous variables. Consult your local Skyfold distributor for project-specific dimensions or restrictions. |
Click to see a full comparison of the whole Skyfold product line.
